Air-Insulated Busbar
Air + slot insulation · best heat dissipation · lowest cost
Air-insulated bus duct uses air together with slot insulation between conductors. Natural convection gives the best heat dissipation of the three busbar types, and it is the most economical choice for general power-distribution rooms.
Technical Parameters
| Insulation | Air + slot insulation |
| Rated current | Low / medium |
| Heat dissipation | Good (natural convection) |
| Protection grade | IP30 – IP54 |
| Volume | Larger |
| Relative cost | Lowest |
| Rated voltage | AC 660 V |
| Standard | GB7251.6-2015 |
TLMF Models & Ratings
| Model | Rated current (A) | Protection | Typical use |
|---|---|---|---|
| TLMF-400A | 400 | IP30–IP54 | Distribution rooms |
| TLMF-630A | 630 | IP30–IP54 | Workshops |
| TLMF-1000A | 1000 | IP30–IP54 | General distribution |
| TLMF-1600A | 1600 | IP30–IP54 | Plant feeders |
Components & Accessories

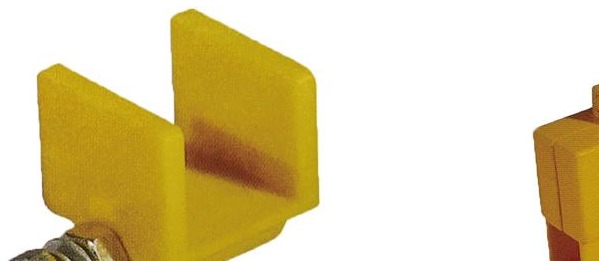

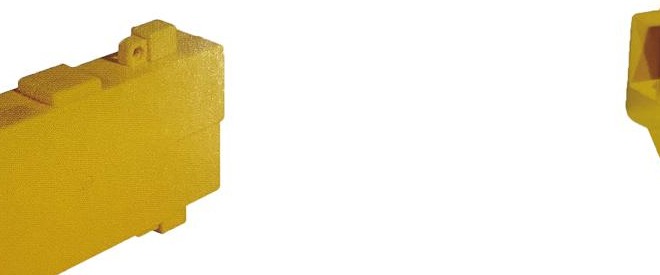

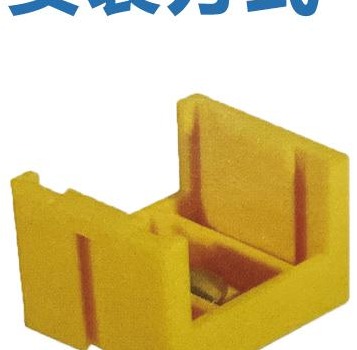

The system is supplied as a complete package. The standard components are shown below — contact us for the full accessory list for your application.
Key Features
- Best natural-convection heat dissipation.
- Lowest cost of the busbar range.
- Simple, robust slot insulation.
- Ideal for general power-distribution rooms.
Applications
General power distribution rooms, workshops, plant feeders.
